Proteus Transformer Kit

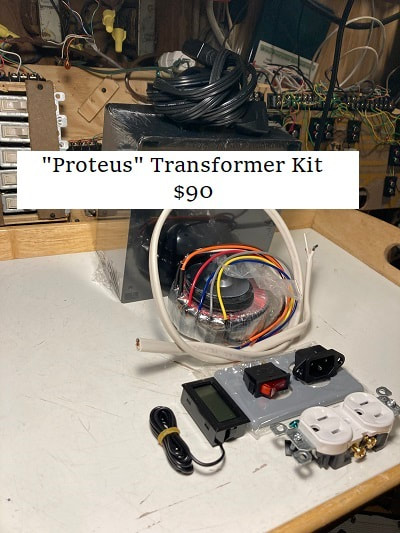

The Proteus Transformer kit is available Now! It includes:
36 VOLTS @ 4.4 AMPS 158.4 WATTS Toroid Transformer
1 ABS Plastic Box
Black and White 14 AWG Wire, 1.5 Feet
6 Wire Nuts (not shown)
1 Battery Powered Fahrenheit Thermostat
1 Outlet
1 Outlet Cover
1 Illuminated Switch
1 LANZMFG LZ-14-1 Power IEC Inlet Flange Mount 320 C14
1 Connecting Cable 120 Volts
Detailed Instructions Included
It could be said that only those who wish to test the "limits" of
O-Gauge Railroading would want these 36 Volts.
But the idea behind this project is not to "blow out" the fancy new electronics in "Modern 3 Rail Engines" - that can be 100% controlled by the user!
What we offer on this website is a "modular" way of providing Power, Circuit Information (Amps/Volts) and Circuit Protection which can now do much more than any Legacy AC Transformer or any "Modern" AC Transformer.
36 Volts are not utilized to "overwhelm" Engine Motive Power, but actually serve to "save" Power!
You may, if you choose, as we did when we tested it - to "overtax" it - but even running the "Proteus" at 28 Volts does not adversely effect its performance or "promote a fire hazard".
It is a concept we hope will be "copied", actually.
But only time will tell...

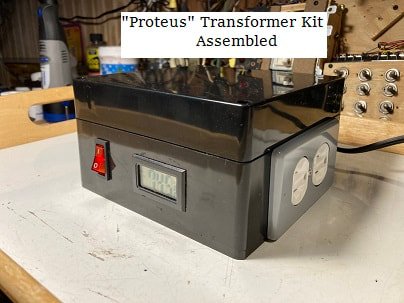

Assembly Required - 21 Years or Older
Qualified Assemblers are Available at an Extra Charge
Watch a "Testing" Video on YouTube at the 3 Rail Train Haus!
https://www.youtube.com/@Waste.and.Ruin3railtrainhaus/videos
